GAC ES9 PHEV 2024
Description
The GAC ES9 PHEV is a plug-in hybrid electric vehicle with high range and fast charging speed.

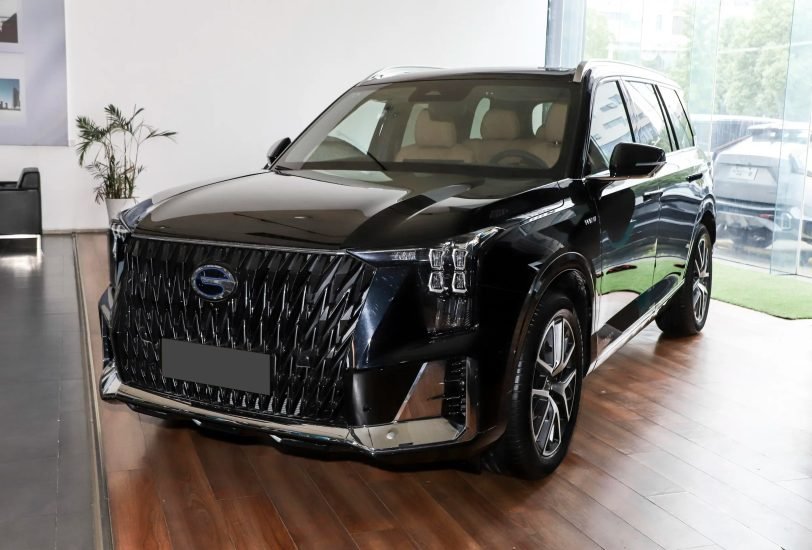

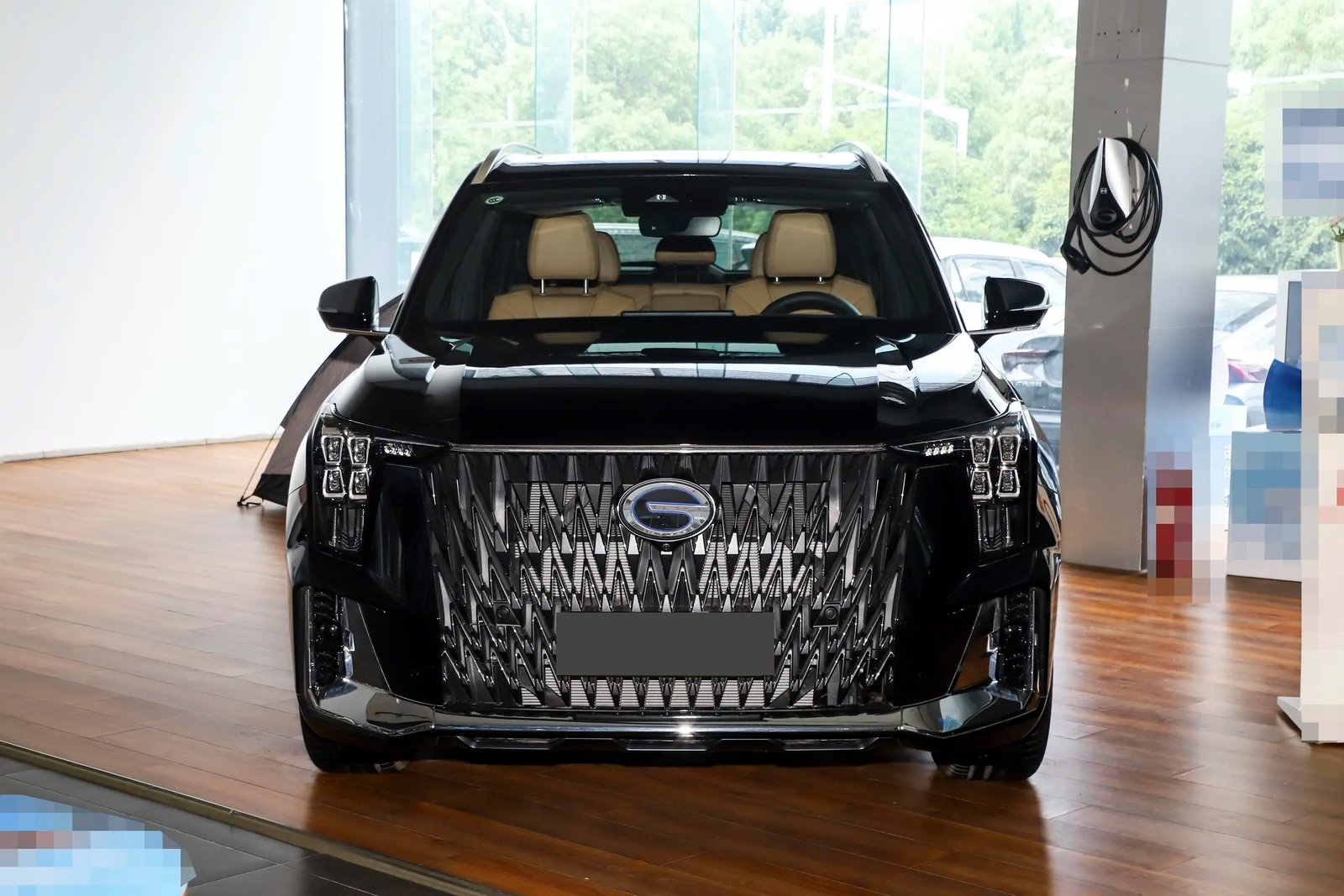

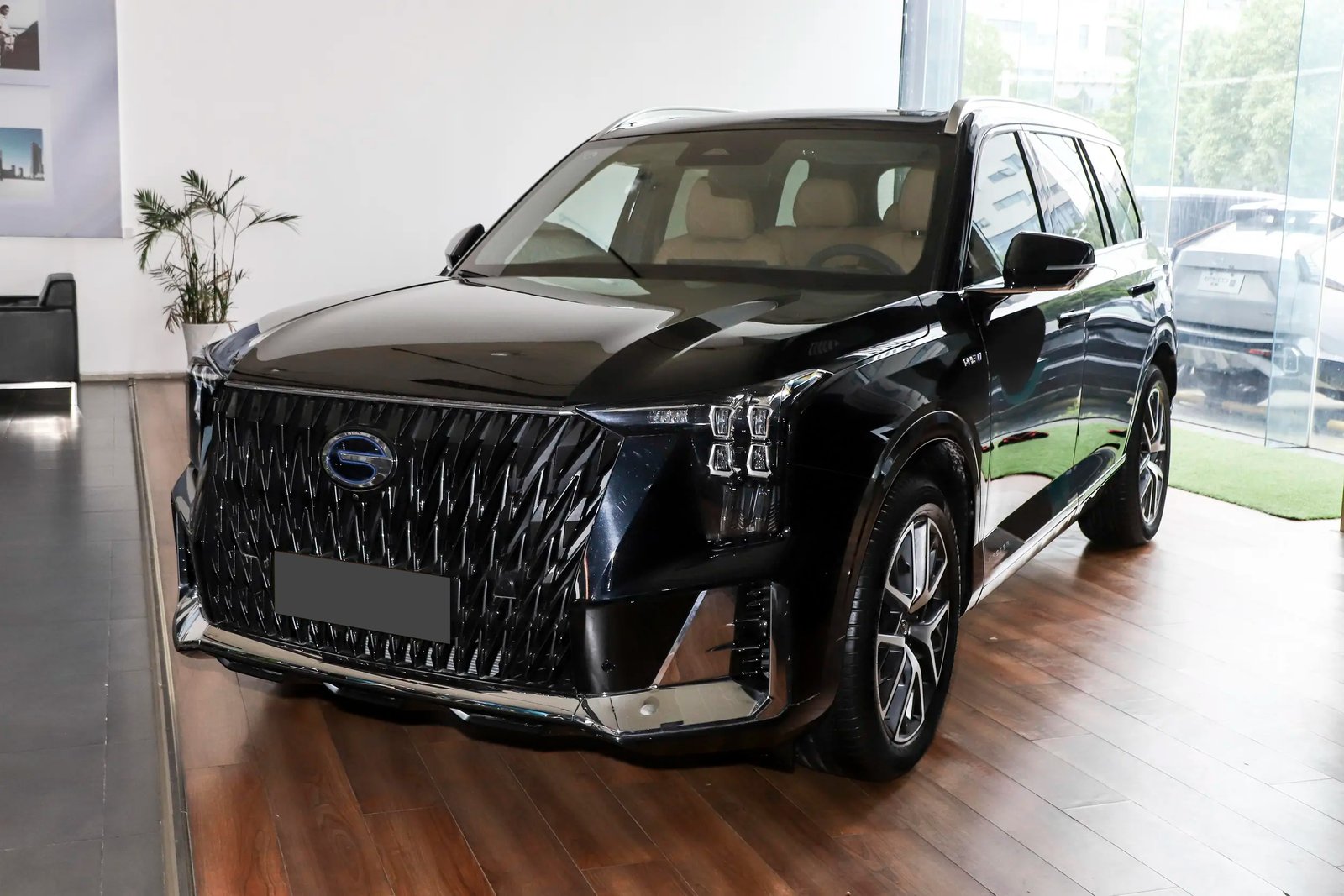

GAC ES9 PHEV uses the family design language, the front part, the huge air intake grille with a unique style of LED headlights, very recognizable. The side lines of the body are smooth and dynamic.

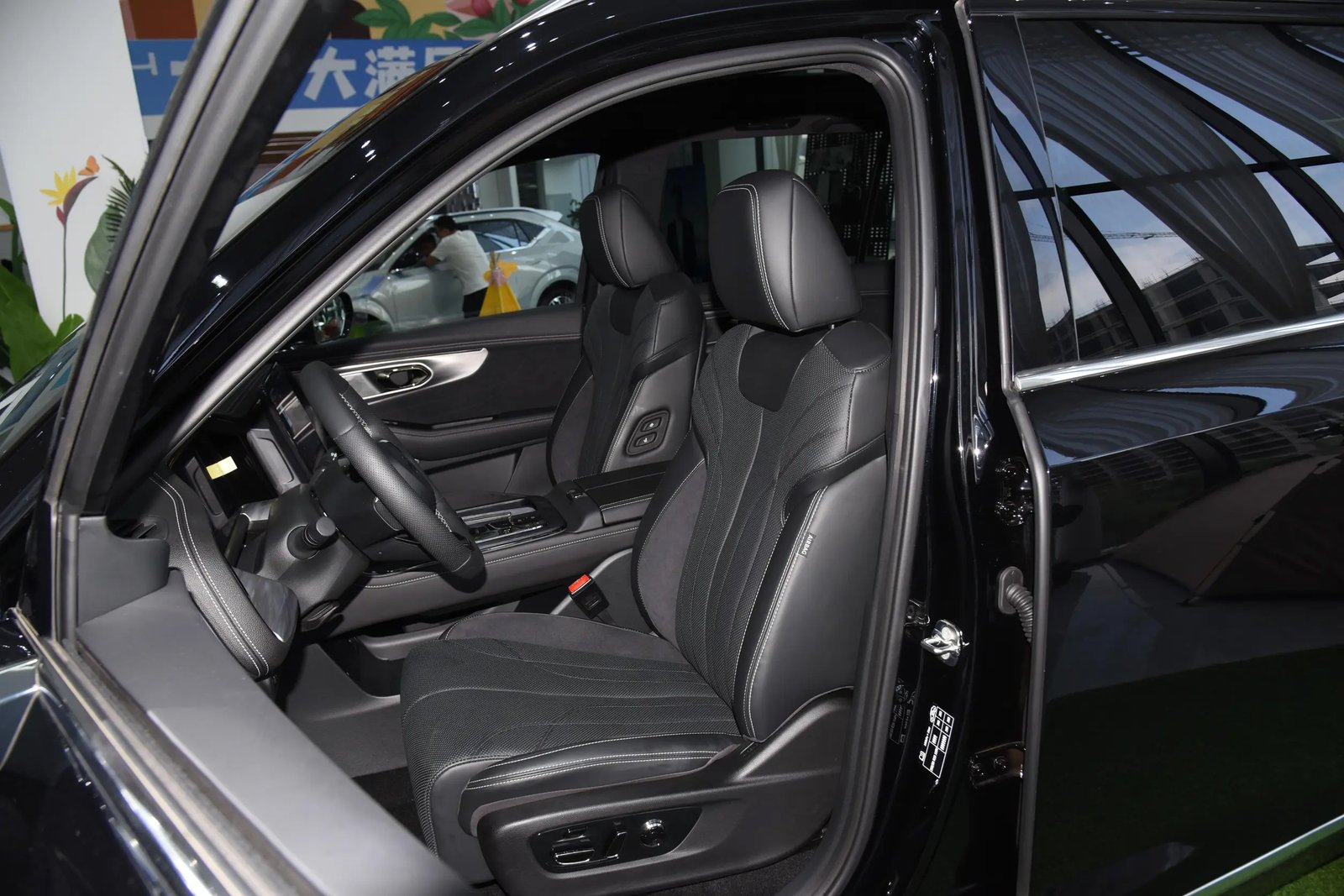

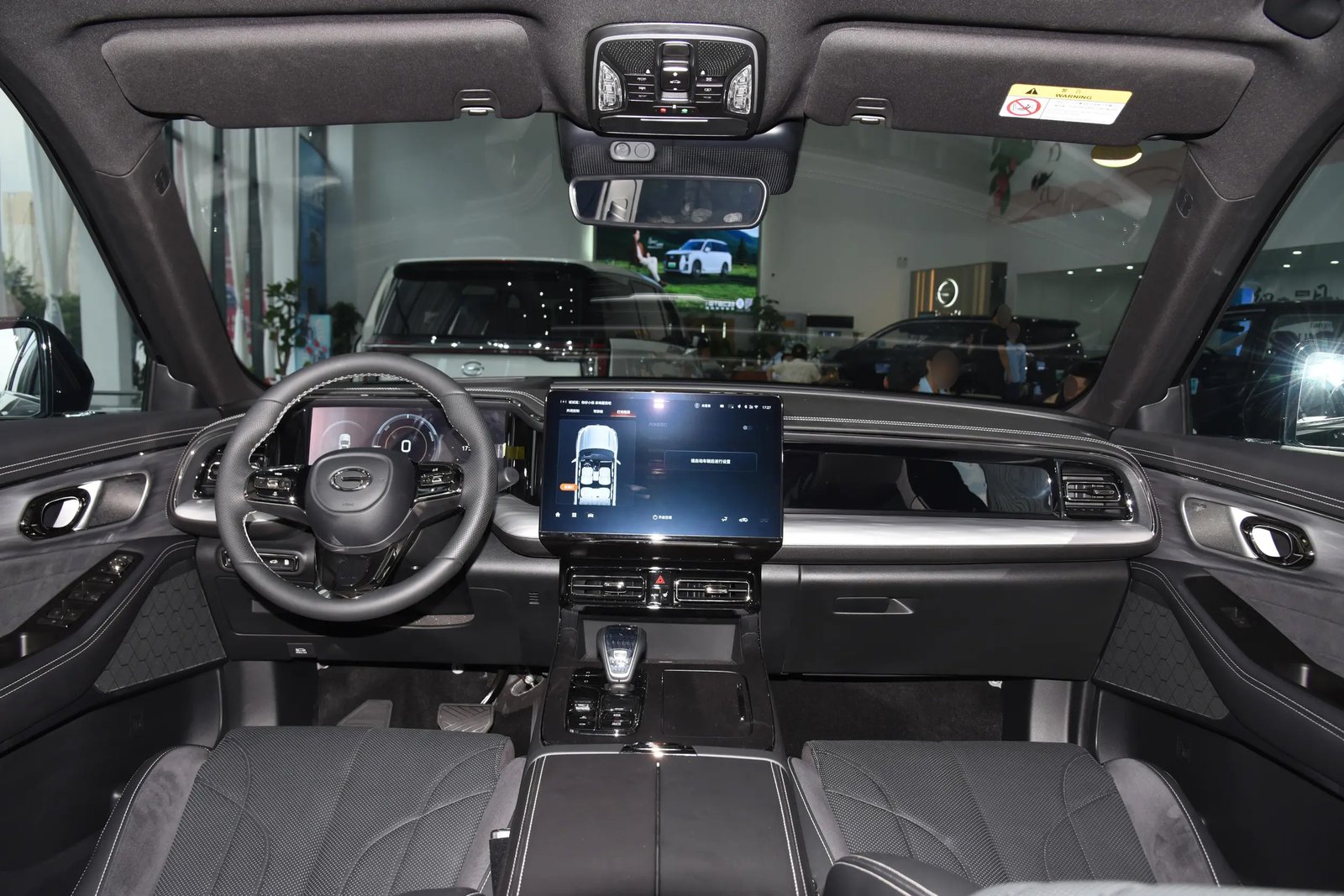

The GAC ES9 PHEV interior features high-quality materials and a dual color design to create a spacious and comfortable driving environment.
In terms of configuration, GAC ES9 PHEV is equipped with full LCD dashboard 12.3 inches, large-size touch screen 14.6 inches, intelligent interconnection system, multi-functional steering wheel, etc., to provide drivers with convenient driving experience.
The GAC ES9 PHEV is equipped with a plug-in hybrid powertrain consisting of a 2.0T turbocharged engine and electric motor. The comprehensive maximum power of the system is 274kW, the maximum torque is 630 N · m, and the power performance is quite excellent.
Parameter configuration
| name | GAC ES9 PHEV 2024 143km PRO+ | GAC ES9 PHEV 2024 143km MAX+ | GAC ES9 PHEV 2024 143km Traveler Pro | GAC ES9 PHEV 2024 143km Traveler Max |
| Basic information | ||||
| manufacturer | GAC | GAC | GAC | GAC |
| rank | Medium and large SUV | Medium and large SUV | Medium and large SUV | Medium and large SUV |
| Energy type | Plug-in hybrid | Plug-in hybrid | Plug-in hybrid | Plug-in hybrid |
| Time to market | 2024.06 | 2024.06 | 2023.1 | 2023.1 |
| engine | 2.0T 190hp L4 plug-in hybrid | 2.0T 190hp L4 plug-in hybrid | 2.0T 190hp L4 plug-in hybrid | 2.0T 190hp L4 plug-in hybrid |
| Pure electric range (km) Ministry of Industry and Information Technology | 110 | 110 | 110 | 110 |
| Electric range (km)WLTC | 110 | 110 | 110 | 110 |
| Electric range (km)CLTC | 143 | 143 | 143 | 143 |
| Comprehensive range (km)WLTC | 1016 | 1016 | 1016 | 1016 |
| Comprehensive range (km)CLTC | 1215 | 1215 | 1215 | 1215 |
| Charging time (hours) | Fast charge 0.36 hours Slow charge 3.5 hours |
Fast charge 0.36 hours Slow charge 3.5 hours |
Fast charge 0.36 hours Slow charge 3.5 hours |
Fast charge 0.36 hours Slow charge 3.5 hours |
| Fast charge (%) | 30-80. | 30-80. | 30-80. | 30-80. |
| Maximum power (kW) | 274 | 274 | 274 | 274 |
| Maximum torque (N·m) | 630 | 630 | 630 | 630 |
| gearbox | Block 2 DHT | Block 2 DHT | Block 2 DHT | Block 2 DHT |
| Length x Width x Height (mm) | 5015x1950x1780 | 5015x1950x1780 | 5110x1976x1780 | 5110x1976x1780 |
| Body structure | 5-door, 7-seater SUV | 5-door, 7-seater SUV | Five-door, six-seater SUV | Five-door, six-seater SUV |
| Maximum speed (km/h) | 180 | 180 | 180 | 180 |
| Official 100 km Acceleration time (s) | 8 | 8 | 8 | 8 |
| WLTC Combined Fuel consumption (L/100km) | 1.2 | 1.2 | 1.2 | 1.2 |
| 100km power consumption (kWh/100km) | 22kWh | 22kWh | 22kWh | 22kWh |
| Power equivalent fuel consumption (L/100km) | 2.49 | 2.49 | 2.49 | 2.49 |
| Minimum charge state fuel consumption (L/100km) Ministry of Industry and Information Technology | 6.18 | 6.18 | 6.18 | 6.18 |
| Minimum charge state fuel consumption (L/100km)CLTC | 5.23 | 5.23 | 5.23 | 5.23 |
| Minimum charge state fuel consumption (L/100km)WLTC | 6.18 | 6.18 | 6.18 | 6.18 |
| Vehicle warranty period | Five years or 150,000 kilometers | Five years or 150,000 kilometers | Five years or 150,000 kilometers | Five years or 150,000 kilometers |
| body | ||||
| Length (mm) | 5015 | 5015 | 5110 | 5110 |
| Width (mm) | 1950 | 1950 | 1976 | 1976 |
| Height (mm) | 1780 | 1780 | 1780 | 1780 |
| Wheelbase (mm) | 2920 | 2920 | 2920 | 2920 |
| Front wheel base (mm) | 1664 | 1664 | 1672 | 1672 |
| Rear wheel base (mm) | 1676 | 1676 | 1684 | 1684 |
| Minimum ground clearance (mm) | - | - | - | - |
| Body structure | SUV | SUV | SUV | SUV |
| Number of doors (each) | 5 | 5 | 5 | 5 |
| Door opening mode | Swing door | Swing door | Swing door | Swing door |
| Number of seats (PCS) | 7 | 7 | 6 | 6 |
| Service weight (kg) | 2220 | 2220 | 2220 | 2220 |
| Full load weight (kg) | 2805 | 2805 | 2805 | 2805 |
| Tank capacity (L) | 56 | 56 | 56 | 56 |
| Luggage compartment Capacity (L) | 1751 | 1751 | 1751 | 1751 |
| Minimum turning radius | 5.85 m | 5.85 m | 5.85 m | 5.85 m |
| Wind resistance coefficient (Cd) | 0.35 | 0.35 | 0.35 | 0.35 |
| engine | ||||
| Engine type | 4B20J2 | 4B20J2 | 4B20J2 | 4B20J2 |
| Volume (mL) | 1991 | 1991 | 1991 | 1991 |
| Displacement (L) | 2 | 2 | 2 | 2 |
| Intake form | turbocharging | turbocharging | turbocharging | turbocharging |
| Engine layout pattern | Hold horizontally | Hold horizontally | Hold horizontally | Hold horizontally |
| Cylinder arrangement | L | L | L | L |
| Number of cylinders (PCS) | 4 | 4 | 4 | 4 |
| Valve per cylinder (number) | 4 | 4 | 4 | 4 |
| Compression ratio | 11.3 | 11.3 | 11.3 | 11.3 |
| Valve mechanism | DOHC | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 190 | 190 | 190 | 190 |
| Maximum power (kW) | 140 | 140 | 140 | 140 |
| Maximum power speed (rpm) | 4500-5000. | 4500-5000. | 4500-5000. | 4500-5000. |
| Maximum torque (N·m) | 330 | 330 | 330 | 330 |
| Maximum torque speed (rpm) | 1500-4000. | 1500-4000. | 1500-4000. | 1500-4000. |
| Engine thermal efficiency (%) | 40.23 | 40.23 | 40.23 | 40.23 |
| Engine specific technology | Miller cycle, overhead water cooled intercooler, fully variable oil pump, double balance shaft system,350bar direct injection system, low pressure EGR system, double channel supercharger, double thermostat cooling | Miller cycle, overhead water cooled intercooler, fully variable oil pump, double balance shaft system,350bar direct injection system, low pressure EGR system, double channel supercharger, double thermostat cooling | Miller cycle, overhead water cooled intercooler, fully variable oil pump, double balance shaft system,350bar direct injection system, low pressure EGR system, double channel supercharger, double thermostat cooling | Miller cycle, overhead water cooled intercooler, fully variable oil pump, double balance shaft system,350bar direct injection system, low pressure EGR system, double channel supercharger, double thermostat cooling |
| Fuel form | Plug-in hybrid | Plug-in hybrid | Plug-in hybrid | Plug-in hybrid |
| Fuel oil label | 92 # | 92 # | 92 # | 92 # |
| Oil supply mode | Direct injection in cylinder | Direct injection in cylinder | Direct injection in cylinder | Direct injection in cylinder |
| Cylinder head material | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Cylinder block material | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Environmental protection standard | Kingdom VI | Kingdom VI | Kingdom VI | Kingdom VI |
| motor | ||||
| Motor description | Plug-in hybrid 182 HP | Plug-in hybrid 182 HP | Plug-in hybrid 182 HP | Plug-in hybrid 182 HP |
| Motor type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 134 | 134 | 134 | 134 |
| Total motor horsepower (Ps) | 182 | 182 | 182 | 182 |
| Total motor torque (N·m) | 300 | 300 | 300 | 300 |
| Maximum power of front motor (kW) | 134 | 134 | 134 | 134 |
| Maximum torque of front motor (N·m) | 300 | 300 | 300 | 300 |
| System power (kW) | 274 | 274 | 274 | 274 |
| System torque (N·m) | 630 | 630 | 630 | 630 |
| Number of driving motors | Single motor | Single motor | Single motor | Single motor |
| Motor layout | preposition | preposition | preposition | preposition |
| Battery/Charging | ||||
| Battery type | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery characteristic technology | Magazine battery | Magazine battery | Magazine battery | Magazine battery |
| Cell brand | Positive force new ability | Positive force new ability | Positive force new ability | Positive force new ability |
| Battery pack warranty | Lifetime warranty for the first owner (exemption of liability is subject to official terms) | Lifetime warranty for the first owner (exemption of liability is subject to official terms) | Lifetime warranty for the first owner (exemption of liability is subject to official terms) | Lifetime warranty for the first owner (exemption of liability is subject to official terms) |
| Battery capacity (kWh) | 25.57 | 25.57 | 25.57 | 25.57 |
| Battery energy density (Wh/kg) | - | - | - | - |
| Battery charging ratio | - | - | - | - |
| Battery charging | Fast charge 0.36 hours Slow charge 3.5 hours |
Fast charge 0.36 hours Slow charge 3.5 hours |
Fast charge 0.36 hours Slow charge 3.5 hours |
Fast charge 0.36 hours Slow charge 3.5 hours |
| ● Fast charge interface | ● Fast charge interface | ● Fast charge interface | ● Fast charge interface | |
| Max Fast charge power (kw) | 40 | 40 | 40 | 40 |
| Position of the fast charge interface | Left fuel tank position | Left fuel tank position | Left fuel tank position | Left fuel tank position |
| Position of the slow charge port | Left fuel tank position | Left fuel tank position | Left fuel tank position | Left fuel tank position |
| Battery temperature management system | ● Low temperature heating | ● Low temperature heating | ● Low temperature heating | ● Low temperature heating |
| ● Liquid cooling | ● Liquid cooling | ● Liquid cooling | ● Liquid cooling | |
| Single pedal mode | - | - | - | - |
| VTOL mobile power station function | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| VTOL Maximum external discharge power | 3.3 kW | 3.3 kW | 3.3 kW | 3.3 kW |
| VTOV Maximum external discharge power | 5.5 kW | 5.5 kW | 5.5 kW | 5.5 kW |
| Minimum allowable value of external discharge (%) | 20 | 20 | 20 | 20 |
| gearbox | ||||
| Transmission description | Block 2 DHT | Block 2 DHT | Block 2 DHT | Block 2 DHT |
| Shift number | 2 | 2 | 2 | 2 |
| Transmission type | Hybrid Special Transmission (DHT) | Hybrid Special Transmission (DHT) | Hybrid Special Transmission (DHT) | Hybrid Special Transmission (DHT) |
| Chassis/steering | ||||
| Driving mode | front-drive | front-drive | front-drive | front-drive |
| Front suspension form | McPherson type independent suspension | McPherson type independent suspension | McPherson type independent suspension | McPherson type independent suspension |
| Rear suspension form | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Steering type | Electric power assist | Electric power assist | Electric power assist | Electric power assist |
| Car body structure | self-supporting | self-supporting | self-supporting | self-supporting |
| Wheel/Brake | ||||
| Front brake type | Ventilated disk type | Ventilated disk type | Ventilated disk type | Ventilated disk type |
| Rear brake type | Ventilated disk type | Ventilated disk type | Ventilated disk type | Ventilated disk type |
| Parking brake type | Electronic parking | Electronic parking | Electronic parking | Electronic parking |
| Front tire specifications | 255/50 R20 | 255/50 R20 | 255/50 R20 | 255/50 R20 |
| Rear tire specifications | 255/50 R20 | 255/50 R20 | 255/50 R20 | 255/50 R20 |
| Spare gauge | - | - | - | - |
| Spare tire placement method | - | - | - | - |
| Active safety | ||||
| ABS anti-lock | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Braking force distribution (EBD/CBC, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Brake assist (EBA/BA, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Traction control (TCS/ASR, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Body stability system (ESP/DSC, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Active safety early warning system | ● Lane departure warning | ● Lane departure warning | ● Lane departure warning | ● Lane departure warning |
| ● Front collision warning | ● Front collision warning | ● Front collision warning | ● Front collision warning | |
| ● Rear collision warning | ● Rear collision warning | ● Rear collision warning | ● Rear collision warning | |
| ● Reverse side warning | ● Reverse side warning | ● Reverse side warning | ● Reverse side warning | |
| ●DOW open door warning | ●DOW open door warning | ●DOW open door warning | ●DOW open door warning | |
| Active brake | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Parallel auxiliary | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Lane keeping assist system | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Keep lane centered | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Fatigue driving tips | - | ● Standard Configuration | - | - |
| Active DMS fatigue detection | - | ● Standard Configuration | - | - |
| In-car vital signs detection | - | ● Standard Configuration | - | - |
| Road traffic sign recognition | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Signal light recognition | - | - | - | - |
| Night vision system | - | - | - | - |
| Passive safety | ||||
| Front airbag | ● Main driver seat | ● Main driver seat | ● Main driver seat | ● Main driver seat |
| ● Passenger seat | ● Passenger seat | ● Passenger seat | ● Passenger seat | |
| Side airbag | ● Front Row | ● Front Row | ● Front Row | ● Front Row |
| Side safety air curtain | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Front knee air bag | - | ● Main driver seat | - | - |
| Central airbag | - | - | - | - |
| Seat belt is not fastened | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Tire pressure monitoring system | ● Tire pressure display | ● Tire pressure display | ● Tire pressure display | ● Tire pressure display |
| Child Seat Interface (ISOFIX) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Passive pedestrian protection | - | - | - | - |
| Safety tyre | - | - | - | - |
