HAVAL Raptor 2024
Description
Haval Raptor, an off-road SUV from Haval Motors.

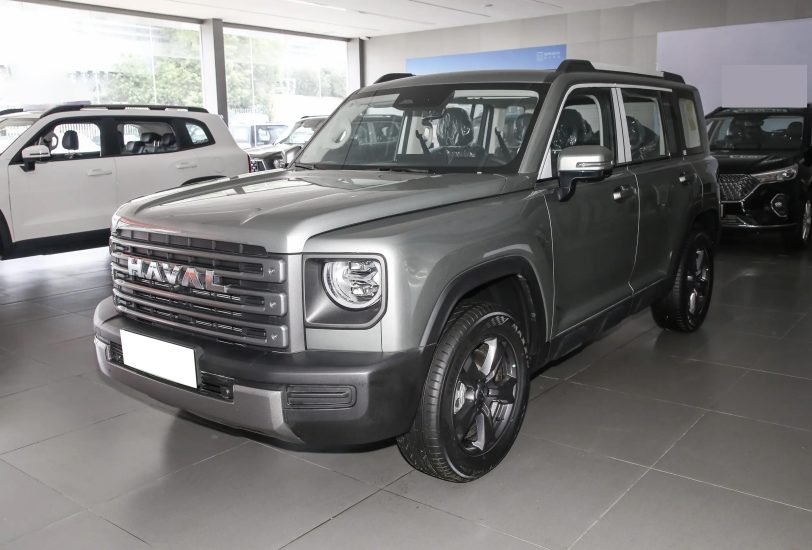

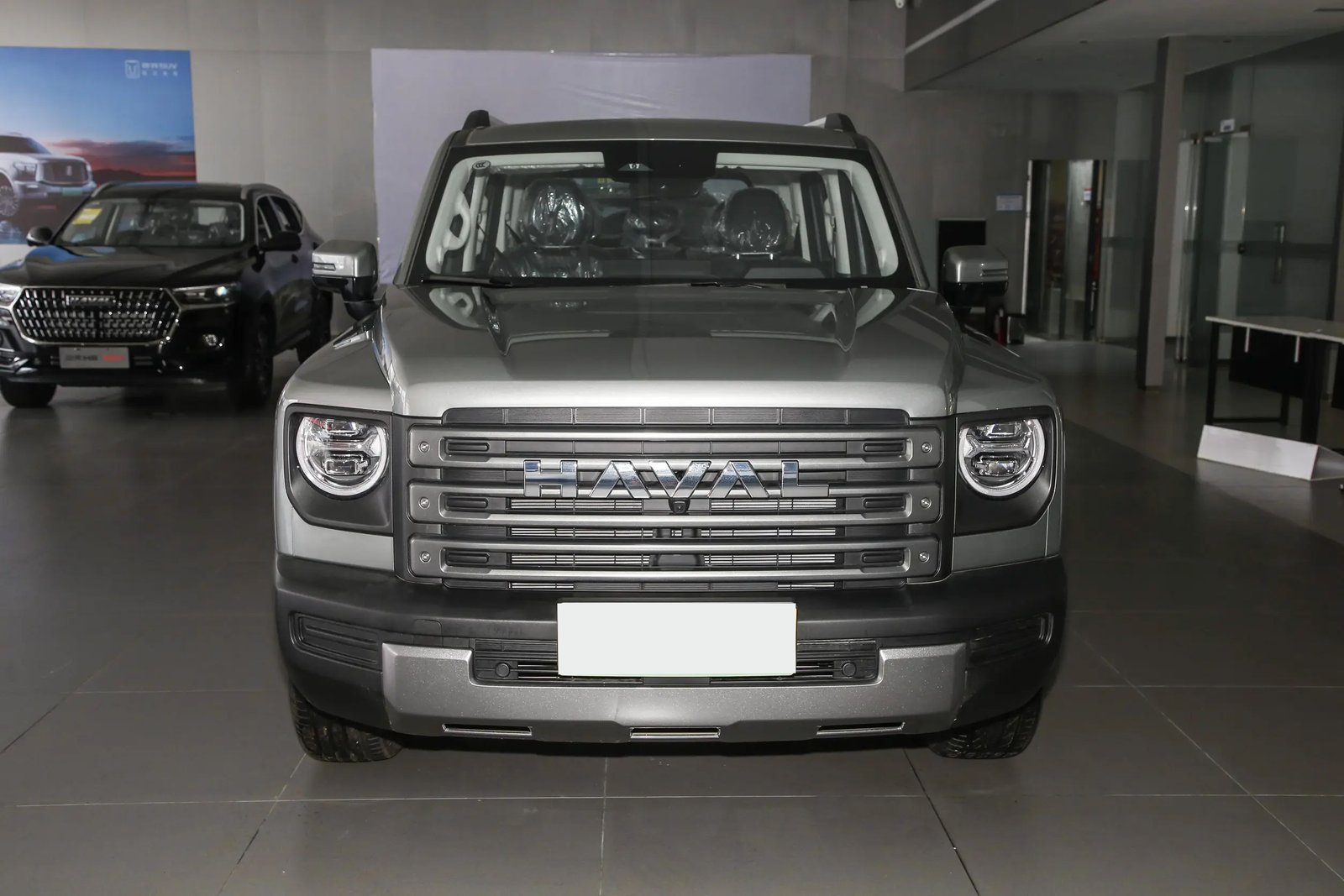

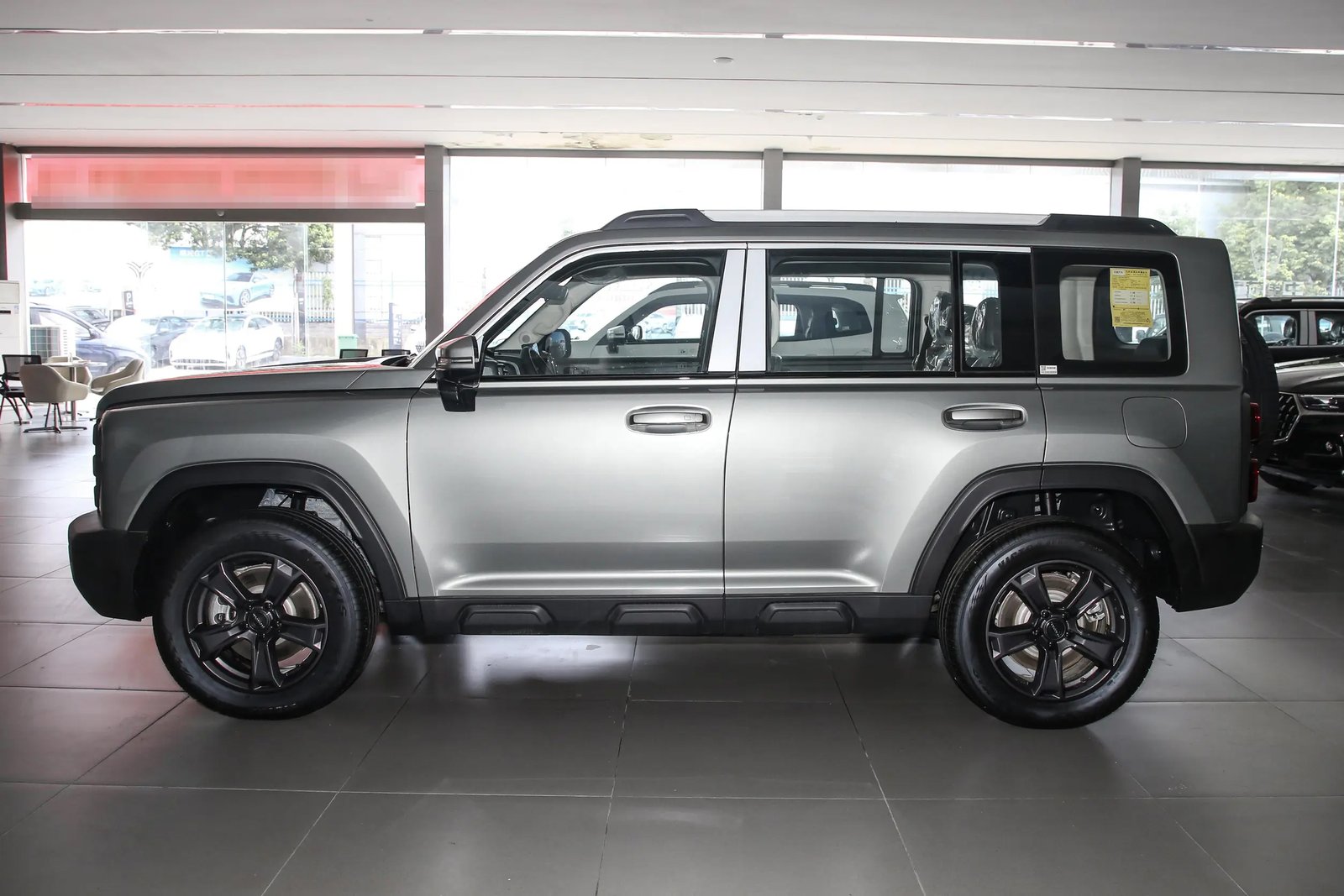

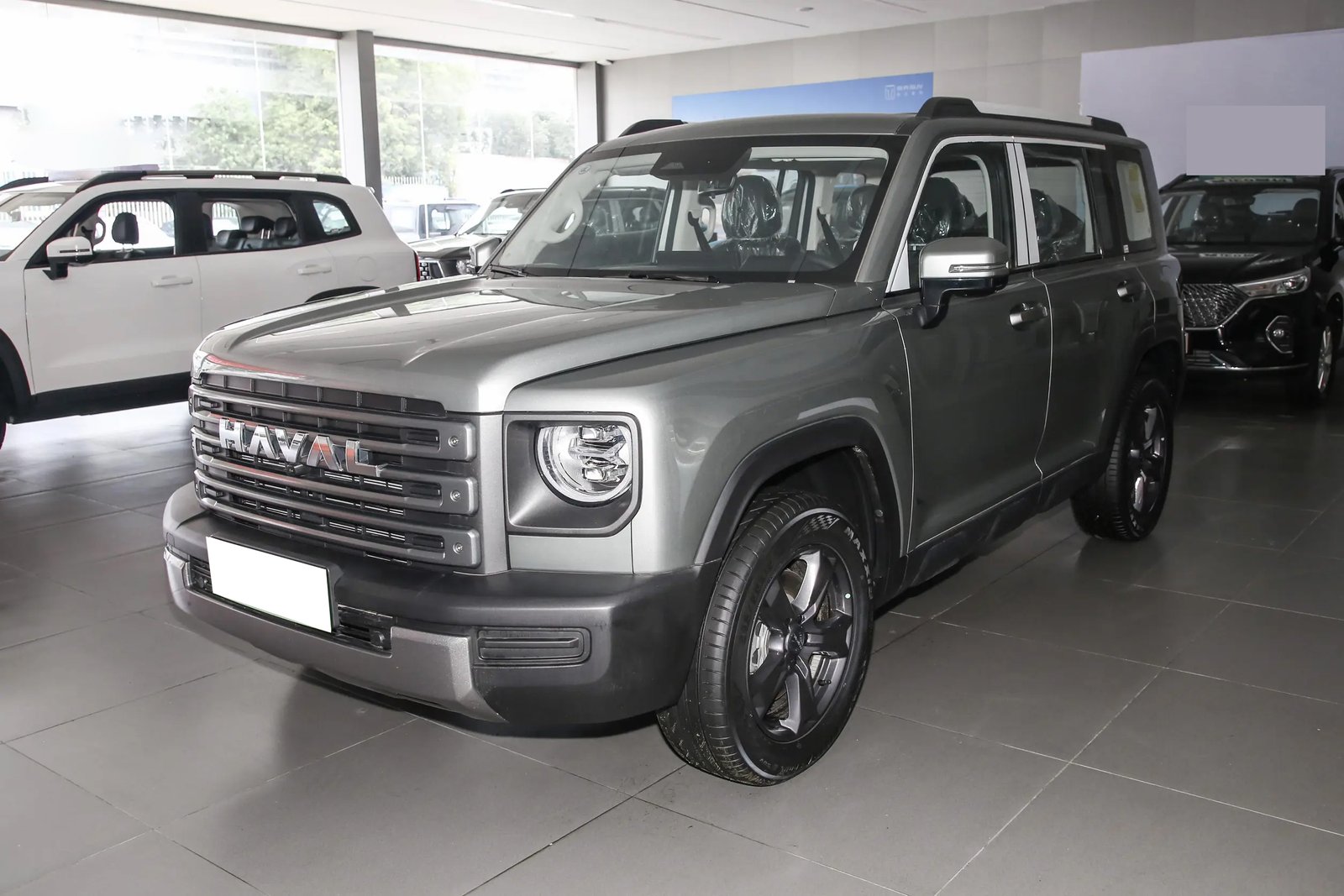

Harvard Raptors inherited the hard style of the Harvard family, at the same time into the retro elements, such as square shape and retro round headlights, make it have a unique visual effect. body color provides two choices of storm yellow and ink Jiangnan gray, to meet the aesthetic needs of different consumers.

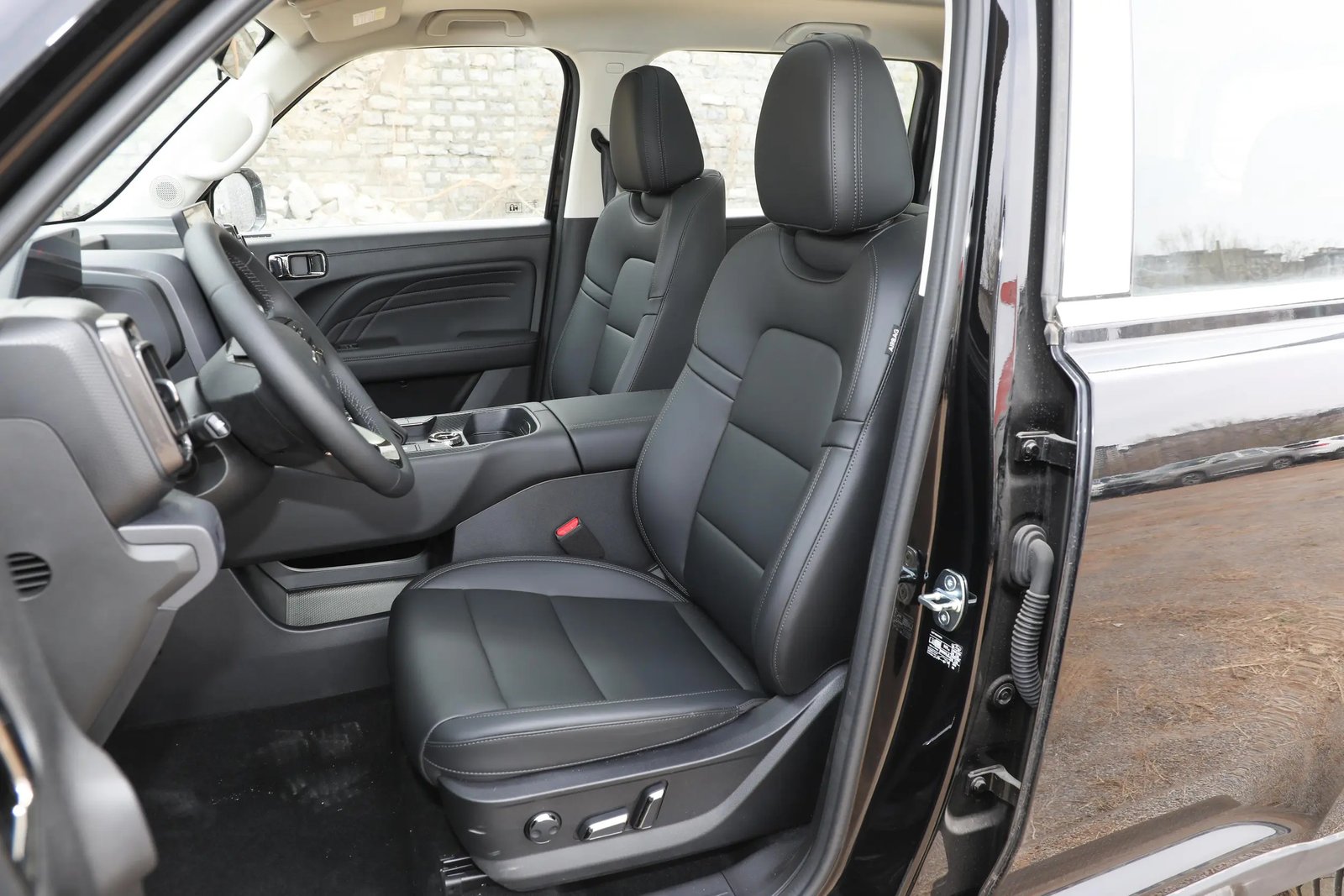

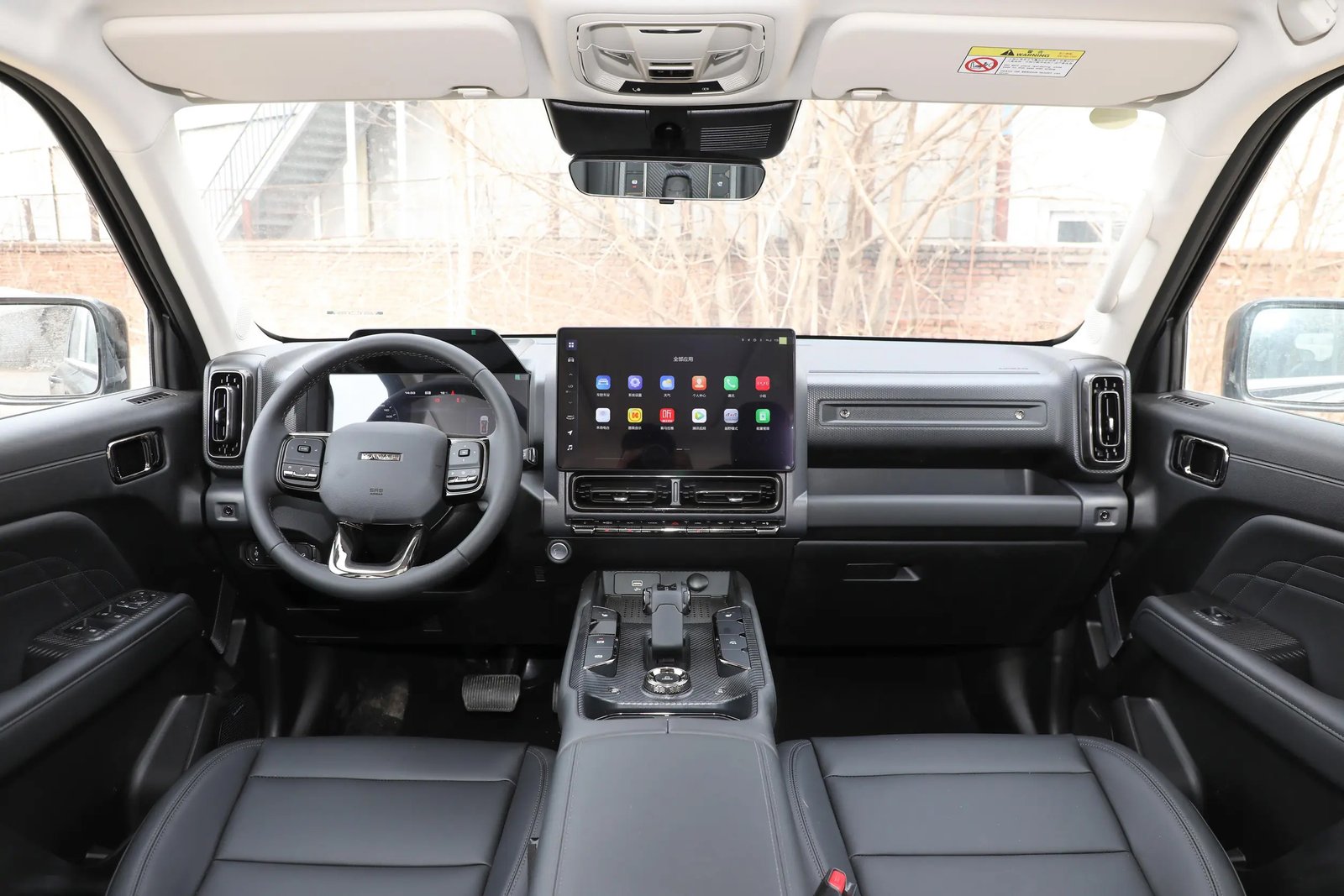

The interior of Haval Raptor focuses on practicality and comfort, adopts a large number of physical buttons and reasonable storage space design, easy to operate .
The Frenon has achieved a significant improvement in the level of intelligence. The car is equipped with 26 sensors, supports L2+ level auxiliary driving functions, including intelligent parking, tracking and reversing, greatly improves the convenience and safety of driving.
Haval Raptor is equipped with a new generation of high thermal efficiency 1.5T hybrid special engine, and equipped with a new intelligent electric four-wheel drive technology Hi4, formed a powerful power combination. with a combined power of 282kW, with a combined torque of 750N•m, offers excellent acceleration and strong torque output.
Parameter configuration
name | Haval Raptor PHEV 2024 1.5T Hi4 102 Air | Haval Raptor PHEV 2024 1.5T Hi4 102 Pro | Haverraptor PHEV 2024 1.5T Hi4 145 Pro | Haval Raptor PHEV 2024 1.5T Hi4 145 Pro Time-travel |
Basic Information | ||||
Manufacturer | Great Wall Motor | Great Wall Motor | Great Wall Motor | Great Wall Motor |
Levels | Compact SUV | Compact SUV | Compact SUV | Compact SUV |
Energy types | Plug-in hybrids | Plug-in hybrids | Plug-in hybrids | Plug-in hybrids |
Time-to-market | 2024.04 | 2024.04 | 2024.04 | 2024.04 |
Engine | 1.5T 167hp L4 plug-in hybrid | 1.5T 167hp L4 plug-in hybrid | 1.5T 167hp L4 plug-in hybrid | 1.5T 167hp L4 plug-in hybrid |
Pure electric range (km) MIIT | 81 | 81 | 115 | 115 |
Pure electric range (km)NEDC | 102 | 102 | 145 | 145 |
Electric range (km)WLTC | 81 | 81 | 115 | 115 |
Integrated range (km)WLTC | - | - | - | - |
Charging time (hours) | - | - | Fast charge 0.47 hours | Fast charge 0.47 hours |
Slow charge for 4.4 hours | Slow charge for 4.4 hours | |||
Fast charge (%) | 30-80 | 30-80 | 30-80 | 30-80 |
Maximum power (kW) | 278 | 278 | 282 | 282 |
Maximum torque (N·m) | 750 | 750 | 750 | 750 |
Gearbox | 2 gear DHT | 2 gear DHT | 2 gear DHT | 2 gear DHT |
Length x width x height (mm) | 4800x1916x1822 | 4800x1950x1843 | 4800x1950x1843 | 4800x1950x1843 |
Body structure | 5-door 5-seater SUV | 5-door 5-seater SUV | 5-door 5-seater SUV | 5-door 5-seater SUV |
Top speed (km/h) | 190 | 190 | 190 | 190 |
Official 100km acceleration time (s) | 6 | 6 | 6.2 | 6.2 |
WLTC Combined fuel consumption (L/100km) | 1.68 | 1.68 | 1.15 | 1.15 |
100km power consumption (kWh/100km) | 17.4 kWh | 17.4 kWh | 19.7 kWh | 19.7 kWh |
Power equivalent fuel consumption (L/100km) | 1.97 | 1.97 | 2.23 | 2.23 |
Minimum charge state fuel consumption (L/100km) Ministry of Industry and Information Technology | 5.98 | 5.98 | 6.09 | 6.09 |
Minimum state of Charge fuel consumption (L/100km)WLTC | 5.98 | 5.98 | 6.09 | 6.09 |
Complete vehicle warranty period | 6 years or 150,000 km | 6 years or 150,000 km | 6 years or 150,000 km | 6 years or 150,000 km |
Bodywork | ||||
Length (mm) | 4800 | 4800 | 4800 | 4800 |
Width (mm) | 1916 | 1950 | 1950 | 1950 |
Height (mm) | 1822 | 1843 | 1843 | 1843 |
Wheelbase (mm) | 2738 | 2738 | 2738 | 2738 |
Front wheel base (mm) | 1641 | 1641 | 1641 | 1641 |
Rear wheel base (mm) | 1640 | 1640 | 1640 | 1640 |
Body structure | SUV | SUV | SUV | SUV |
Number of doors (each) | 5 | 5 | 5 | 5 |
How the doors open | Flat doors | Flat doors | Flat doors | Flat doors |
Number of seats (each) | 5 | 5 | 5 | 5 |
Quality of maintenance (kg) | 2055 | 2055 | 2135 | 2135 |
Full load mass (kg) | 2480 | 2480 | 2560 | 2560 |
Tank volume (L) | 55 | 55 | 55 | 55 |
Luggage compartment capacity (L) | 586-1404 | 586-1404 | 586-1404 | 586-1404 |
Minimum turning radius | - | - | - | - |
Engine | ||||
Engine model | GW4B15E | GW4B15E | GW4B15E | GW4B15E |
Displacement (mL) | 1499 | 1499 | 1499 | 1499 |
Displacement (L) | 1.5 | 1.5 | 1.5 | 1.5 |
Intake form | Turbocharging | Turbocharging | Turbocharging | Turbocharging |
Engine layout form | Horizontal | Horizontal | Horizontal | Horizontal |
Cylinder arrangement form | L | L | L | L |
Number of cylinders (number) | 4 | 4 | 4 | 4 |
Number of valves per cylinder (number) | 4 | 4 | 4 | 4 |
Compression ratio | 12.4 | 12.4 | 12.4 | 12.4 |
Valve mechanism | DOHC | DOHC | DOHC | DOHC |
Maximum horsepower (Ps) | 167 | 167 | 167 | 167 |
Maximum power (kW) | 123 | 123 | 123 | 123 |
Maximum power rpm (rpm) | 5500-6000 | 5500-6000 | 5500-6000 | 5500-6000 |
Maximum torque (N·m) | 243 | 243 | 243 | 243 |
Maximum torque speed (rpm) | 1500-4000 | 1500-4000 | 1500-4000 | 1500-4000 |
Engine thermal efficiency (%) | 41.5 | 41.5 | 41.5 | 41.5 |
Engine specific technology | Miller cycle, low pressure exhaust gas recirculation | Miller cycle, low pressure exhaust gas recirculation | Miller cycle, low pressure exhaust gas recirculation | Miller cycle, low pressure exhaust gas recirculation |
Fuel form | Plug-in hybrids | Plug-in hybrids | Plug-in hybrids | Plug-in hybrids |
Fuel label | 92 # | 92 # | 92 # | 92 # |
Method of oil supply | Direct injection in cylinder | Direct injection in cylinder | Direct injection in cylinder | Direct injection in cylinder |
Cylinder head material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
Cylinder block material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
Environmental standards | National VI | National VI | National VI | National VI |
Electric motor | ||||
Motor Description | Plug-in hybrid 299 HP | Plug-in hybrid 299 HP | Plug-in hybrid 299 HP | Plug-in hybrid 299 HP |
Motor type | Permanent magnet/Synchronous | Permanent magnet/Synchronous | Permanent magnet/Synchronous | Permanent magnet/Synchronous |
Total motor power (kW) | 220 | 220 | 220 | 220 |
Total motor horsepower (Ps) | 299 | 299 | 299 | 299 |
Total motor torque (N·m) | 510 | 510 | 510 | 510 |
Maximum power of front motor (kW) | 70 | 70 | 70 | 70 |
Maximum torque of front motor (N·m) | 160 | 160 | 160 | 160 |
Max power of rear motor (kW) | 150 | 150 | 150 | 150 |
Maximum torque of rear motor (N·m) | 350 | 350 | 350 | 350 |
Total system power (kW) | 278 | 278 | 282 | 282 |
System torque (N·m) | 750 | 750 | 750 | 750 |
Number of drive motors | Dual motors | Dual motors | Dual motors | Dual motors |
Motor layout | Front + rear | Front + rear | Front + rear | Front + rear |
Battery/Charge | ||||
Battery type | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery |
Battery Features | Dayu Battery | Dayu Battery | Dayu Battery | Dayu Battery |
Battery brand | Ningde Times | Ningde Times | Hive Energy | Hive Energy |
Battery pack warranty | 8 years or 150,000 km (first owner lifetime warranty, liability exemption clause subject to official) | 8 years or 150,000 km (first owner lifetime warranty, liability exemption clause subject to official) | 8 years or 150,000 km (first owner lifetime warranty, liability exemption clause subject to official) | 8 years or 150,000 km (first owner lifetime warranty, liability exemption clause subject to official) |
Battery capacity (kWh) | 18.74 | 18.74 | 27.54 | 27.54 |
Battery energy density (Wh/kg) | - | - | - | - |
Battery charge ratio | - | - | - | - |
Battery charging | - | - | Fast charge 0.47 hours | Fast charge 0.47 hours |
Slow charge for 4.4 hours | Slow charge for 4.4 hours | |||
● Fast charge port | ● Fast charge port | ● Fast charge port | ● Fast charge port | |
Max fast charge power (kw) | 33 | 33 | 41 | 41 |
Position of the fast charge interface | Right tank position | Right tank position | Right tank position | Right tank position |
Slow charge port location | Right tank position | Right tank position | Right tank position | Right tank position |
Battery temperature management system | ● Low temperature heating | ● Low temperature heating | ● Low temperature heating | ● Low temperature heating |
● Liquid cooling | ● Liquid cooling | ● Liquid cooling | ● Liquid cooling | |
Single pedal mode | ● Standard | ● Standard | ● Standard | ● Standard |
VTOL mobile power station function | ● Standard | ● Standard | ● Standard | ● Standard |
Maximum external discharge power of VTOL | 3.3 kW | 3.3 kW | 3.3 kW | 3.3 kW |
VTOV Maximum external discharge power | - | - | - | - |
Gearbox | ||||
Gearbox Description | 2 gear DHT | 2 gear DHT | 2 gear DHT | 2 gear DHT |
Gear number | 2 | 2 | 2 | 2 |
Gearbox type | Hybrid Special Transmission (DHT) | Hybrid Special Transmission (DHT) | Hybrid Special Transmission (DHT) | Hybrid Special Transmission (DHT) |
Chassis/steering | ||||
Drive mode | Front all-wheel-drive | Front all-wheel-drive | Front all-wheel-drive | Front all-wheel-drive |
All-wheel-drive type | Electric all-wheel-drive | Electric all-wheel-drive | Electric all-wheel-drive | Electric all-wheel-drive |
Front suspension form | McPherson style independent suspension | McPherson style independent suspension | McPherson style independent suspension | McPherson style independent suspension |
Rear suspension form | Multi-link type independent suspension | Multi-link type independent suspension | Multi-link type independent suspension | Multi-link type independent suspension |
Steering type | Electric power lift | Electric power lift | Electric power lift | Electric power lift |
Car body construction | Carrying type | Carrying type | Carrying type | Carrying type |
Wheels/brakes | ||||
Front brake type | Vented disc type | Vented disc type | Vented disc type | Vented disc type |
Rear brake type | Vented disc type | Vented disc type | Vented disc type | Vented disc type |
Parking brake type | Electronic parking | Electronic parking | Electronic parking | Electronic parking |
Front tire specification dimensions | 245/60 R18 | 255/60 R19 | 255/60 R19 | 255/60 R19 |
Rear tire specification dimensions | 245/60 R18 | 255/60 R19 | 255/60 R19 | 255/60 R19 |
Spare tire Specifications | ● Full size | - | - | - |
- | ● Not full size | ● Not full size | ● Not full size | |
How the spare tire is placed | ● Knapsack | ● Knapsack | ● Knapsack | ● Knapsack |
Active safety | ||||
ABS anti-lock | ● Standard | ● Standard | ● Standard | ● Standard |
Braking force distribution (EBD/CBC, etc.) | ● Standard | ● Standard | ● Standard | ● Standard |
Brake assist (EBA/BA, etc.) | ● Standard | ● Standard | ● Standard | ● Standard |
Traction control (TCS/ASR, etc.) | ● Standard | ● Standard | ● Standard | ● Standard |
Body stability system (ESP/DSC, etc.) | ● Standard | ● Standard | ● Standard | ● Standard |
Active safety early warning system | - | ● Lane departure warning | ● Lane departure warning | ● Lane departure warning |
- | ● Forward collision warning | ● Forward collision warning | ● Forward collision warning | |
- | ● Rear collision warning | ● Rear collision warning | ● Rear collision warning | |
- | ● Reverse side warning | ● Reverse side warning | ● Reverse side warning | |
- | ●DOW open door warning | ●DOW open door warning | ●DOW open door warning | |
- | - | - | ○ Traffic crossing warning ahead | |
- | - | - | ○ Traffic crossing ahead braking | |
Active braking | - | ● Standard | ● Standard | ● Standard |
Parallel wire assist | - | ● Standard | ● Standard | ● Standard |
Lane keeping assist system | - | ● Standard | ● Standard | ● Standard |
Lane keeping centered | - | ● Standard | ● Standard | ● Standard |
Tired Driving Tips | ● Standard | ● Standard | ● Standard | ● Standard |
Active DMS fatigue detection | - | - | - | - |
In-vehicle vital signs detection | - | - | - | - |
Road traffic sign recognition | - | ● Standard | ● Standard | ● Standard |
Signal light recognition | - | - | - | - |
Night vision system | - | - | - | - |
Passive safety | ||||
Front airbags | ● Main driver's seat | ● Main driver's seat | ● Main driver's seat | ● Main driver's seat |
● Passenger seat | ● Passenger seat | ● Passenger seat | ● Passenger seat | |
Side airbags | ● Front row | ● Front row | ● Front row | ● Front row |
Side safety air curtain | - | ● Standard | ● Standard | ● Standard |
Front knee airbags | - | - | - | - |
Center airbag | - | - | - | - |
Seat belt not fastened prompt | ● Standard | ● Standard | ● Standard | ● Standard |
Tire pressure monitoring system | ● Tire pressure display | ● Tire pressure display | ● Tire pressure display | ● Tire pressure display |
Child seat interface (ISOFIX) | ● Standard | ● Standard | ● Standard | ● Standard |
Passive pedestrian protection | - | - | - | - |
Safety tires | - | - | - | - |
Assist/handling configuration | ||||
Parking radar | - | - | - | ○ Front |
After the low | After the low | After the low | After the low | |
● Reminder of front car leaving | - | - | - | - |
Driver assistance imaging | ● Reverse video | ● Reverse video | ● Reverse video | ● Reverse video |
- | ● Blind spot on the side of the car | ● Blind spot on the side of the car | ● Blind spot on the side of the car | |
- | ●360° panoramic image | ●360° panoramic image | ●360° panoramic image | |
- | ● Transparent image | ● Transparent image | ● Transparent image | |
Cruise system | ● Fixed-speed cruise icon | ● Cruise control | ● Cruise control | ● Cruise control |
- | ● Adaptive cruise | ● Adaptive cruise | ● Adaptive cruise | |
- | ● Full speed adaptive cruise | ● Full speed adaptive cruise | ● Full speed adaptive cruise | |
Automatic lane change assist | - | - | - | - |
Automatic Ramp exit (in) | - | - | - | - |
Navigation assist driving | - | - | - | ○ Highway sections |
Assisted driving level | - | ●L2 level | ●L2 level | ●L2 level |
Automatic parking entry | - | - | - | ○ Optional |
Tracking reverse | - | - | - | - |
Memory parking | - | - | - | - |
Automatic parking (AUTOHOLD) | ● Standard | ● Standard | ● Standard | ● Standard |
Uphill Assist (HAC) | ● Standard | ● Standard | ● Standard | ● Standard |
Steep Descent (HDC) | ● Standard | ● Standard | ● Standard | ● Standard |
Engine start-stop technique | - | - | - | - |
Variable suspension regulation | - | - | - | - |
Air suspension | - | - | - | - |
Electromagnetic induction suspension | - | - | - | - |
Variable steering ratio system | - | - | - | - |
Front axle limit slip mode | - | - | - | - |
Rear axle limited slip mode | - | ○ Differential lock 6000 yuan | ○ Differential lock 6000 yuan | ● Differential lock |
Central differential locking function | - | - | - | - |
Low-speed all-wheel-drive | - | - | - | - |
Integral active steering system | - | - | - | - |
Driving mode Selection | ● Sport | ● Sport | ● Sport | ● Sport |
● Cross-country | ● Cross-country | ● Cross-country | ● Cross-country | |
● Snow | ● Snow | ● Snow | ● Snow | |
●ECO/ Economy | ●ECO/ Economy | ●ECO/ Economy | ●ECO/ Economy | |
● Standard Comfort | ● Standard Comfort | ● Standard Comfort | ● Standard Comfort | |
Braking energy recovery system | ● Standard | ● Standard | ● Standard | ● Standard |
Low speed driving warning tone | ● Standard | ● Standard | ● Standard | ● Standard |
External configuration | ||||
Skylight type | - | ● Can open panoramic sunroof | ● Can open panoramic sunroof | ● Can open panoramic sunroof |
Light awning | - | - | - | - |
Roof rack | ● Standard | ● Standard | ● Standard | ● Standard |
Sports look kit | - | - | - | - |
Power spoiler | - | - | - | - |
Active closed intake grille | - | - | - | - |
Aluminum alloy wheels | ● Standard | ● Standard | ● Standard | ● Standard |
Side foot pedals | - | - | - | - |
Frameless design doors | - | - | - | - |
Hidden door handles | - | - | - | - |
Drag hooks | - | - | - | - |
In the field of automobile exhibition, Zhengle Automobile Sales Co., Ltd. actively participates in all kinds of automobile exhibitions and exhibitions at home and abroad. At the same time, we have also passed the brand certification to export cars to various places. Through the exhibition, the company can show the company's products and services to more customers and expand the company's influence. At the same time, the company can also understand the market dynamics and the status quo of competitors, provide reference and support for the development of the company, and bring better products and lower prices for customers.
Why choose us
Our company has established close ties and cooperation with Changan, MG, BYD and other brand factories for many years, and has a variety of types of own modification workshops. The company has advanced production equipment and professional technicians, committed to creating high-quality cars personalized customized services. We have a wide range of products, including sedans, SUVs, MPVS, etc., to meet your various needs and make your car unique.
Q. What Kind Of Trade Terms Available From Your Side?
A. We Can Deal By EXW, FCA, FOB, CFR, DAP, CIF, DDP. Etc.
Q. How About The Delivery Time?
A. The Delivery Time Will Be Various By Different Cars, Please Contact With Our Sales Online Service For Details.
Q. Is There Any After-Sales Service?
A:We Support The Maintenance Of The Vehicle Free Technical Support And Other After-Sales Services.
Q. What Kind Of Payment Terms Can Be Acceptable?
A. We're Flexible For Payment Terms, Including TT, L/C, DP, OVA And Alibaba Online Payment.
Q. What Brands Do You Have?
A. We Have Established Long-Term Strategic Cooperation Partnership With MG, Changan, BYD, Tesla, VW, Roewe, Zeeker, Leapmotor, Rising Auto, Geely, Avatr, Li Xiang, Chery, Hycan, NIO, XPeng, Neta, DongFeng, Wuling, Buick, Toyota, Honda, Etc. We Are Dealing With The Most Popular Vehicles Made In China. We Have A Wide Range Of Vehicle Brand And Models.
Q. How You Control The Quality Of Your Products?
A. Our Products Testing Process Is Strictly Monitored To Ensure Our Clients Will Get The Best Quality Goods. From Production To Packaging , Our QC Will Process Three Times Inspection . Good Culture Is Our Culture.
Q. What Is The Ordering Process?
1). Select Your Preferred Car, Confirmed The Price And Delivery Term With Our Sales.
2). We Create Alibaba Trade Assurance Order Or Prepare The PI With Bank Details.
3). Make Deposit Payment Or Issue L/C.
4). After Deposit Payment Confirmed, We Get The Vehicles Ready.
5). Balance Payment Should Be Done Before Goods Delivery.
