Tank 500 Hi4-T 2024
Description
The Tank 500 Hi4-T is an off-road SUV that combines a sense of power and a new energy style, and its overall strength cannot be underestimated.

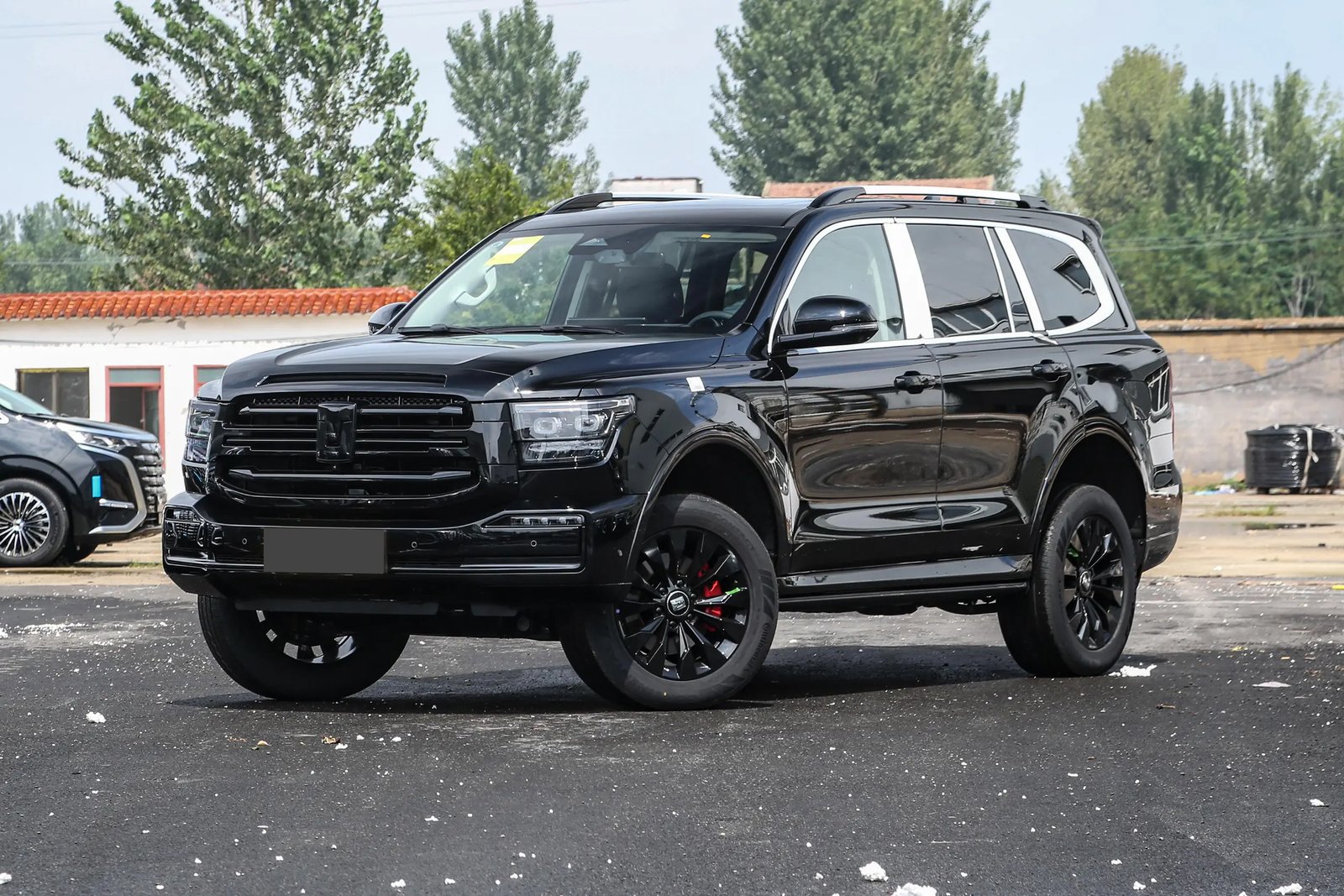

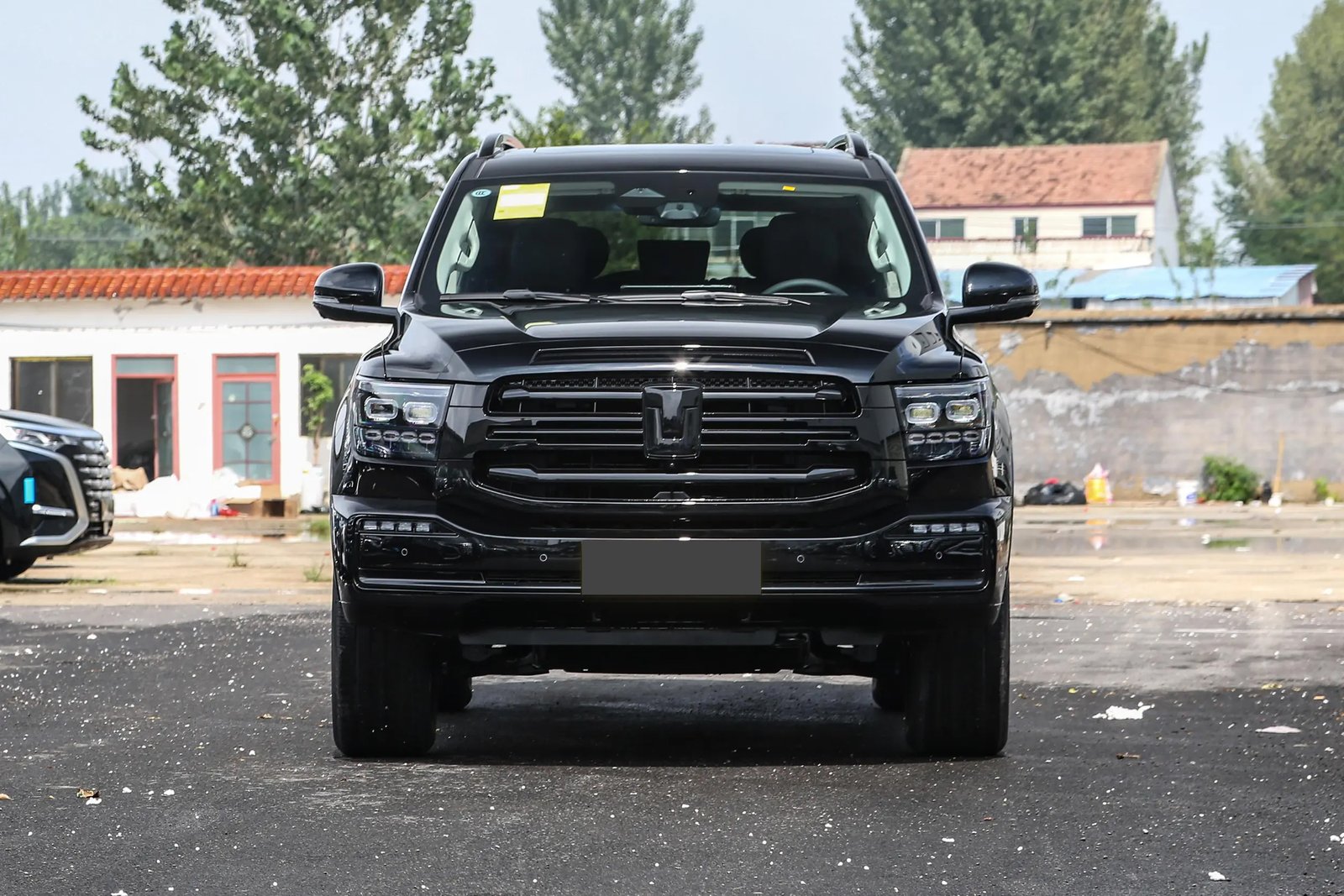

The body lines are full of muscle, the lines on the hood are towering, and the rugged air intake grille shows a strong visual impact.

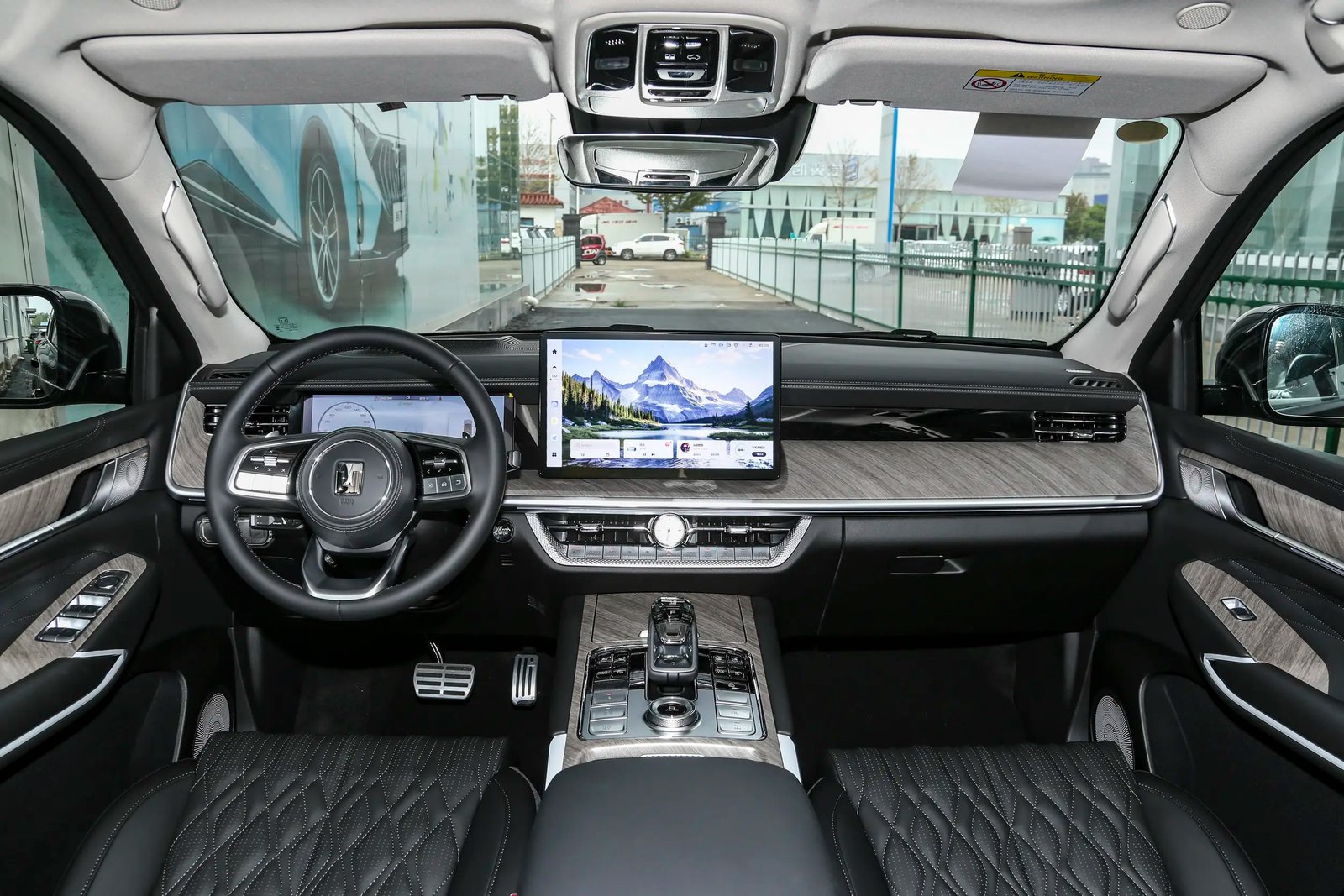

In terms of interior, the steering wheel is round and leather-wrapped for comfort to the touch, the center control screen provides a clear view, and the seats are well supported for a comfortable ride, even on bumpy roads .
Although the tank 500 Hi4-T body is larger and heavier, but sufficient power, accurate handling, especially accurate steering.
The tank 500 Hi4-T uses a front-facing single motor layout, with a total motor power of up to 120kW and a peak torque of 400N·m. Under WLTC conditions, the pure electric range can reach 110km.
Parameter configuration
| name | Tank 500 Hi4-T 2023 modified 2.0T Hi4-T |
| Basic information | |
| manufacturer | Great Wall Motor |
| rank | Medium and large SUV |
| Energy type | Plug-in hybrid |
| Time to market | 2024.03 |
| engine | 2.0T 252 HP L4 plug-in hybrid |
| Pure electric range (km) Ministry of Industry and Information Technology | 110 |
| Electric range (km)NEDC | 120 |
| Electric range (km)WLTC | 110 |
| Comprehensive range (km)WLTC | 790 |
| Charging time (hours) | Fast charge 0.4 hours Slow charge 6.5 hours |
| Fast charge (%) | 30-80. |
| Maximum power (kW) | 300 |
| Maximum torque (N·m) | 750 |
| gearbox | 9 Block hands in one body |
| Length x Width x Height (mm) | 5078x1934x1905 |
| Body structure | 5 door 5 seat SUV |
| Maximum speed (km/h) | 180 |
| Official 100 km Acceleration time (s) | 6.9 |
| WLTC Combined Fuel consumption (L/100km) | 2.06 |
| 100km power consumption (kWh/100km) | 25.7 kWh |
| Minimum charge state fuel consumption (L/100km) Ministry of Industry and Information Technology | 8.8 |
| Minimum charge state fuel consumption (L/100km)WLTC | 8.8 |
| Vehicle warranty period | Five years or 150,000 kilometers |
| body | |
| Length (mm) | 5078 |
| Width (mm) | 1934 |
| Height (mm) | 1905 |
| Wheelbase (mm) | 2850 |
| Front wheel base (mm) | 1635 |
| Rear wheel base (mm) | 1635 |
| Minimum ground clearance (mm) | 213 |
| Body structure | SUV |
| Number of doors (each) | 5 |
| Door opening mode | Swing door |
| Number of seats (PCS) | 5 |
| Service weight (kg) | 2830 |
| Full load weight (kg) | 3330 |
| Tank capacity (L) | 70 |
| Luggage compartment Capacity (L) | - |
| Minimum turning radius | - |
| Approach Angle (°) | 29.5 |
| Departure Angle (°) | 24 |
| Maximum gradient (%) | - |
| engine | |
| Engine type | E20NB |
| Volume (mL) | 1998 |
| Displacement (L) | 2 |
| Intake form | turbocharging |
| Cylinder arrangement | L |
| Number of cylinders (PCS) | 4 |
| Valve per cylinder (number) | 4 |
| Compression ratio | - |
| Valve mechanism | DOHC |
| Maximum horsepower (Ps) | 252 |
| Maximum power (kW) | 185 |
| Maximum power speed (rpm) | 6000 |
| Maximum torque (N·m) | 380 |
| Maximum torque speed (rpm) | 1700-4000. |
| Engine thermal efficiency (%) | 39.2 |
| Engine specific technology | - |
| Fuel form | Plug-in hybrid |
| Fuel oil label | 92 # |
| Oil supply mode | Direct injection in cylinder |
| Cylinder head material | Aluminium alloy |
| Cylinder block material | Aluminium alloy |
| Environmental protection standard | Country VI b |
| motor | |
| Motor description | Plug-in hybrid 163 HP |
| Motor type | Permanent magnet/synchronous |
| Total motor power (kW) | 120 |
| Total motor horsepower (Ps) | 163 |
| Total motor torque (N·m) | 400 |
| Maximum power of front motor (kW) | 120 |
| Maximum torque of front motor (N·m) | 400 |
| System power (kW) | 300 |
| System torque (N·m) | 750 |
| Number of driving motors | Single motor |
| Motor layout | preposition |
| Battery/Charging | |
| Battery type | Ternary lithium battery |
| Cell brand | Hive energy |
| Battery pack warranty | Unlimited number of years/mileage of the first owner (liability exemption clause is subject to official) |
| Battery capacity (kWh) | 37.1 |
| Battery energy density (Wh/kg) | - |
| Battery charging ratio | - |
| Battery charging | Fast charge 0.4 hours Slow charge 6.5 hours |
| ● Fast charge interface | |
| Position of the fast charge interface | Right side tank position |
| Position of the slow charge port | Right side tank position |
| Battery temperature management system | ● Low temperature heating |
| ● Liquid cooling | |
| Single pedal mode | - |
| VTOL mobile power station function | ● Standard Configuration |
| VTOL Maximum external discharge power | 3.3 kW |
| VTOV Maximum external discharge power | - |
| gearbox | |
| Transmission description | 9 Block hands in one body |
| Shift number | 9 |
| Transmission type | Manual Transmission (AT) |
| Chassis/steering | |
| Driving mode | front-wheel-drive |
| Four-wheel drive type | Timely four-wheel drive |
| Central differential structure | Multi-disc clutch type central differential |
| Front suspension form | Double fork arm independent suspension |
| Rear suspension form | Integral bridge type non-independent suspension |
| Steering type | Electric power assist |
| Car body structure | Non-bearing type |
| Wheel/Brake | |
| Front brake type | Ventilated disk type |
| Rear brake type | Ventilated disk type |
| Parking brake type | Electronic parking |
| Front tire specifications | 265/55 R19 |
| Rear tire specifications | 265/55 R19 |
| Spare gauge | ● Full size |
| Spare tire placement method | ● Knapsack |
| Active safety | |
| ABS anti-lock | ● Standard Configuration |
| Braking force distribution (EBD/CBC, etc.) | ● Standard Configuration |
| Brake assist (EBA/BA, etc.) | ● Standard Configuration |
| Traction control (TCS/ASR, etc.) | ● Standard Configuration |
| Body stability system (ESP/DSC, etc.) | ● Standard Configuration |
| Active safety early warning system | ● Lane departure warning |
| ● Front collision warning | |
| ● Rear collision warning | |
| ● Reverse side warning | |
| ●DOW open door warning | |
| Active brake | ● Standard Configuration |
| Parallel auxiliary | ● Standard Configuration |
| Lane keeping assist system | ● Standard Configuration |
| Keep lane centered | ● Standard Configuration |
| Fatigue driving tips | ● Standard Configuration |
| Active DMS fatigue detection | - |
| In-car vital signs detection | - |
| Road traffic sign recognition | ● Standard Configuration |
| Signal light recognition | - |
| Night vision system | - |
| Passive safety | |
| Front airbag | ● Main driver seat |
| ● Passenger seat | |
| Side airbag | ● Front Row |
| Side safety air curtain | ● Standard Configuration |
| Front knee air bag | - |
| Central airbag | - |
| Seat belt is not fastened | ● Standard Configuration |
| Tire pressure monitoring system | ● Tire pressure display |
| Child Seat Interface (ISOFIX) | ● Standard Configuration |
| Passive pedestrian protection | - |
| Safety tyre | - |
